SMS 2400mm Width Polypropylene Spunmelt Non Woven Fabric Production Line For Pillow Cover

Fiber fineness

spunbond system ≤1.7-2.0den, melt blown system: 2~4μ m

Fabric weight range

10-100g/ m2

Maximum production speed


Annual output

4500 tons/year

Product Description

1.Company Profile:

Guanlong Non-textile Technology Co., ltd in Quanzhou is specialized in the research,design and manufacturing of non-woven fabric production line and non-woven processing machinery since 2017.Guanlong’s predecessor is Zhejiang General Nonwoven Machine Manufacturing Company, which started in 2005. Now Guanlong has developed a series of nonwoven technological solutions like S, SS,SSS, SMS, SMMS, SSMS and SSMMS production lines and a variety of nonwoven processing machine selections.
Guanlong’s company policy: Product is personality ,Innovation is the driving force and Customers’ need is our standard. We warmly invite your cooperation.

2.Product details

2-1:Main Technology data
1.1:.product type:SMS Spunbond Meltblown Composite Nonwoven Fabric,SS Spunbond Nonwoven Fabric Meltblown Nonwoven Fabric)
1.2. Product width:2400mm(Standard width after trimming))

1.3. Number of die heads: 2 sets of spunbond, 1 set of meltblown
1.4. Fiber fineness: spunbond system ≤1.7-2.0den, melt blown system: 2~4μ m
1.5.Fabric weight range:10-100g/ m2
1.6. Maximum production speed: 350m/min
1.7. Annual output: 4500 tons/year
1.8.Consumption (average): SS<800-1000 degrees/ton, SMS≤1100-1800 degrees/ton

2-2. product description

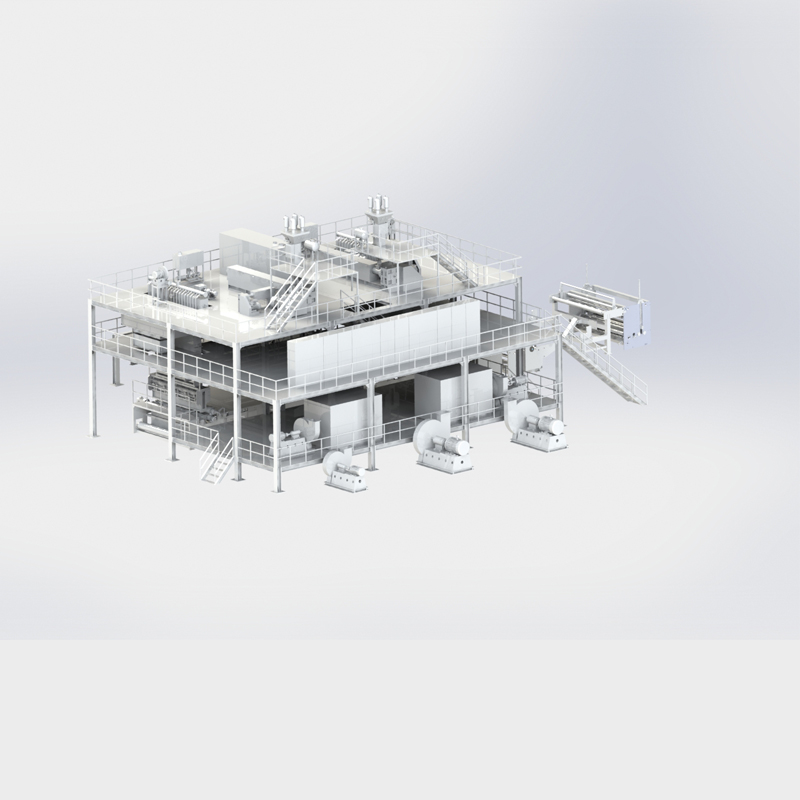

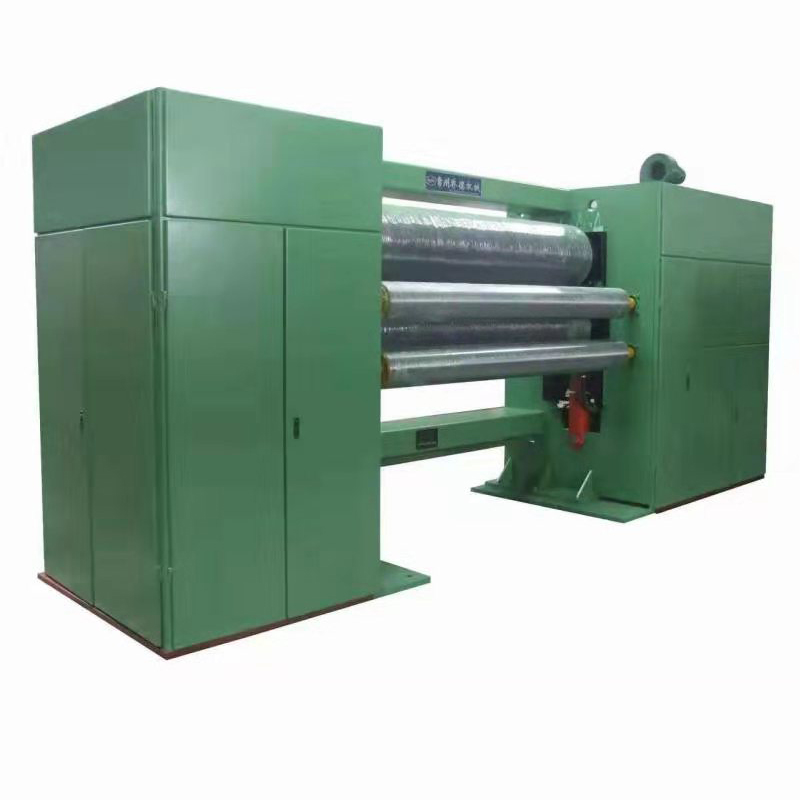

SMS Spunmelt Nonwoven Machine is well designed in three beams while combines spunbond and meltblown manufacturing technique, which is a composite line for nonwoven production.
It adopts an intelligent electrical control cabinet and spinning drafting system. The system controlling mode features in advanced AC frequency-modulated speed, fully digital synchronized communications.

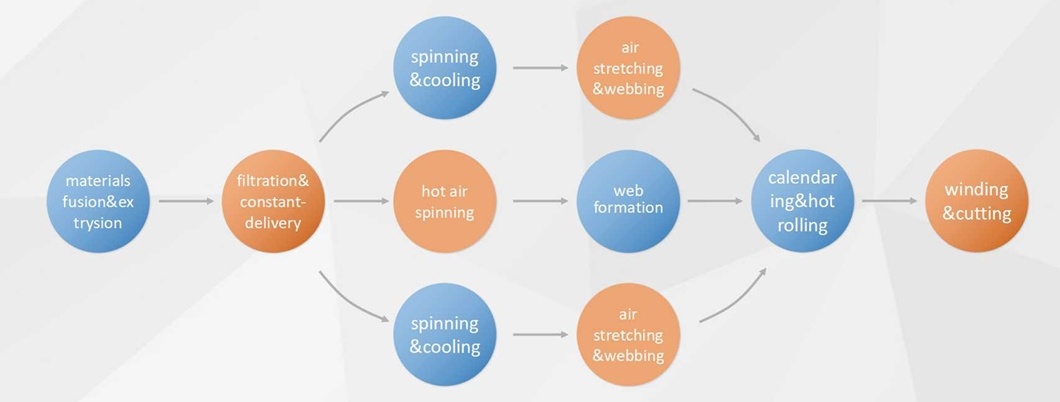

2-3 product flow

(S)Feeding—–Extrusion Melting—–Filtering—–Metering—–Spinning—–Cooling—–Stretching—–Web spreading—–Thermal bonding—-Slitting—–End Products
(M)Feeding—–Extrusion Melting—–Filtering—–Metering—–Hot air Spinning—-Web formation—-Electret —-Winder—-Slitting—colletcing

2-4 specification of sms

The main specifications of SMS Spunbond Nonwoven Machine:
Model No.GL-SMS
SMS(product width)1600 mm2400 mm3200 mm
Equipment size31x20x11 m32x21x11 m34x22x11 m
Speed400 m/min400 m/min400 m/min
Gram Weight12-150 g/m212-150 g/m212-150 g/m2
Yield(Products according to 40 g/m2)10-11 T/DAY15-16 T/DAY20-22 T/DAY


3.Main parts

3-1 Filter

1.Maximum working pressure: 16MPa
2.Maximum working temperature: 310℃
3.Single cylinder filter area: 0.5-19㎡

3-2 Screw extruder

1. Aspect ratio L/D=30:1.
2.Screw diameter: Φ150mm
3.Siemens Bede AC motor 110kw, Fuji frequency controller
4.The spiral cylinder and screw are made of high-strength nitriding steel, equipped with resistance heater, divided into several heating zones, including a full set of electrical control devices, including power, temperature control, pressure control, etc. see the plasticizing capacity of electric control part for details

3-3 slitting machine

1.The main driving roller is made of seamless steel tube
2.Cutting speed:800-1000m/min
3. Siemens Bede AC motor, 15kw * 1 set, Fuji variable frequency controller of Japan
4.Minimum cutting width: 100 mm
5.Maximum winding diameter: 1000mm
6.Number of slitting knives 16 sets
7. 3 carbon fiber gas expansion shafts

3-4 Fan of cold air and suction air system

1.The speed of exhaust fan is adjustable2.Accessories: GD-SM-SO2 static mixer
3.Total air volume: 15000-23000 m³/ h
4.Air pressure regulator: Fuji Inverter(RKC-F900)
5.The fan power is 75KW * 1 set, 90kW * 1 set, including the exhaust pipe, and the suction air is discharged to the outdoor
6. The power of cold air fan is 75kw, 2sets, Siemens Bede motor is adopted

4. packing&delivery


Q1:How many days will you finish installing?
A1:We will finish installation and training within 7-10 days.
Q1:How long is your machine’s warranty period?
A1:All our machine have one year guarantee, starting from finished installation.
Q1:How could we do if the parts broken within warranty?
A1:We would express the free replacement parts during the warranty date.
Q1:How do we solve the machine problem after your engineer leaving?
A1:Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our after sales specialist at any time.Our engineers will take a solution video according your description.
