Fully Automatic Nonwoven Thermal-bonded Machine For 3 Ply Non-woven Fabric Facemask

Model No.

GL-SMMS

Speed

450 m/min

Origin Place

China

Gram Weight

8-100 g/m2

Product Description

1.Company Profile:

Guanlong has been focusing on nonwoven fabric making machine over 15 years. We combine international advanced technology and provide various holistic solutions of production lines for customers according to their request.
So far,we have manufacture hundreds of full -automatic production lines for customer from India, Indonesia, Philippines, Nepal, Russia and other countries.

2.Product details

2-1.Main data
1.1. product type

SMS Spunbond Meltblown Composite Nonwoven Fabric,SS Spunbond Nonwoven Fabric Meltblown Nonwoven Fabric
M meltblown Nonwoven Fabric
1.2. Product width:3200mm(Standard width after trimming)
1.3. Number of die heads: 2 sets of spunbond, 2 set of meltblown
1.4. Fiber fineness: spunbond system ≤1.6-2.0den, melt blown system: 2~5μ m
1.5.Fabric weight range:10-150g/ m2
1.6. Maximum production speed: 600m/min
1.7. Annual output: 4500 tons/year

2. product description

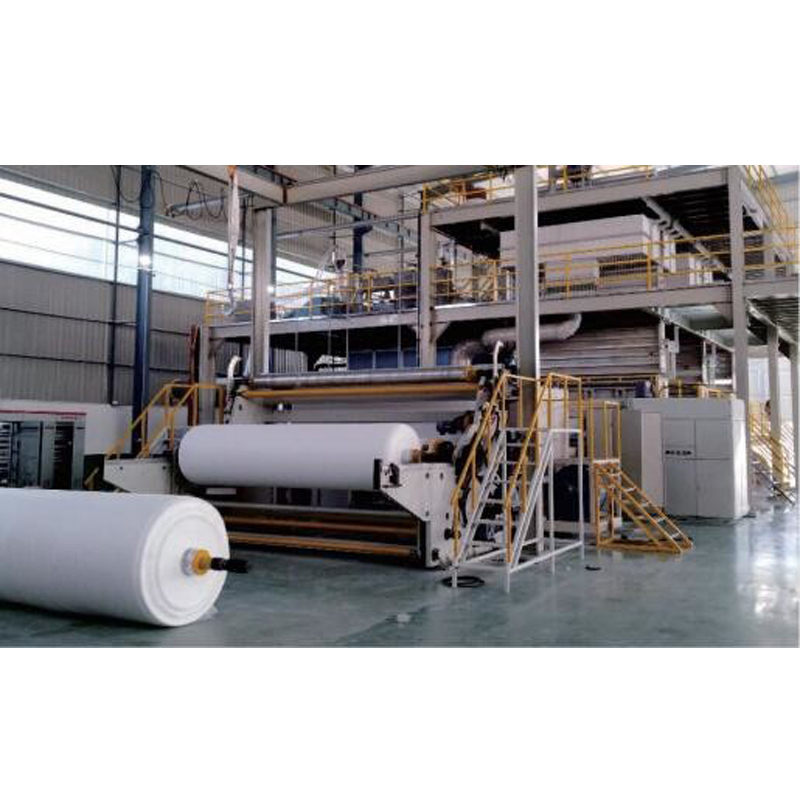

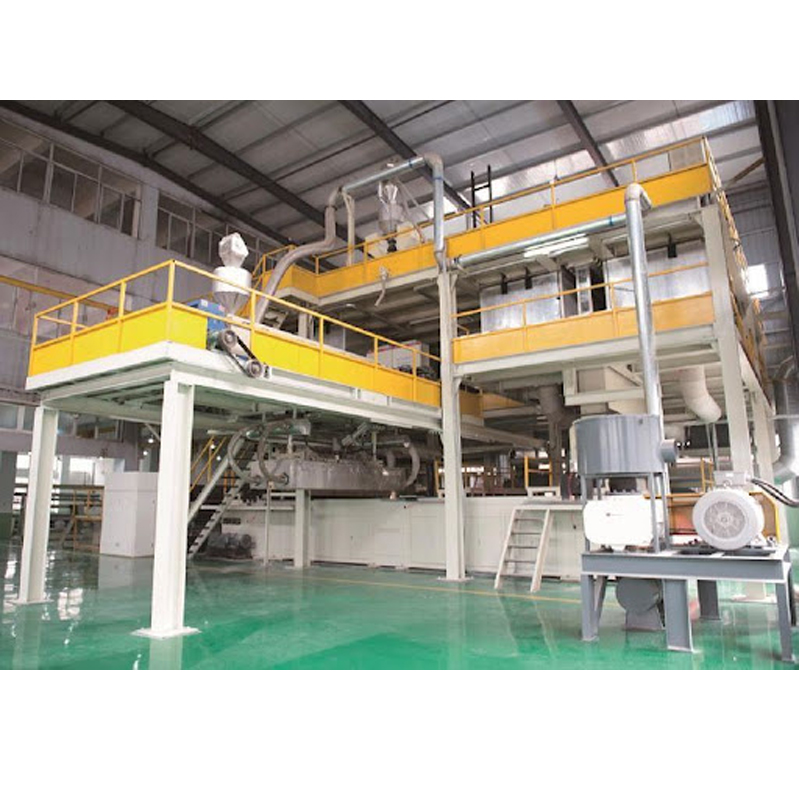

SMMS Spunmelt Nonwoven Machine is a composite line for nonwoven production which combines spunbond and meltblown manufacturing technique. It has four beams in production and can be customized for you according to your demands of production.

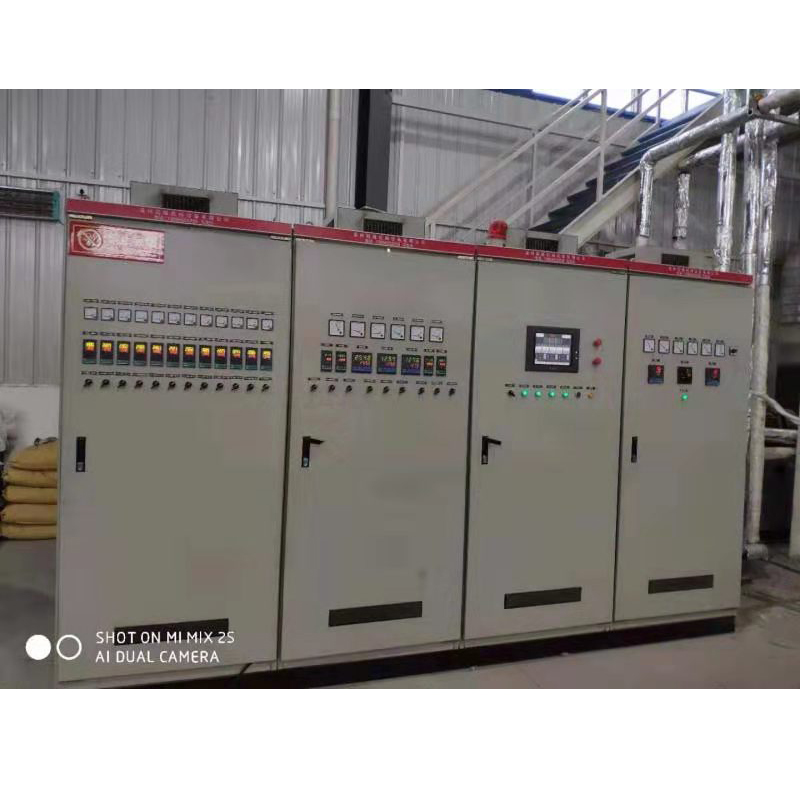

It adopts an intelligent electrical control cabinet and spinning drafting system. The system controlling mode features in advanced AC frequency-modulated speed, fully digital synchronized communications.

2-3.production flow


SMMS Spunmelt Nonwoven Machine is manufactured for PP composite non-woven fabrics. After the raw materials input, go through extrusion melting, filtering, metering, spinning, cooling, stretching, web spreading, thermal bonding and cutting as per requirements and then packed for storage and delivery.

2-4.the specification of smms machine

The main specifications of SMMS Spunbond Nonwoven Machine:
Model No.GL-SMMS
SMMS(product width)1600 mm2400 mm3200 mm
Equipment size40x25x11 m40x26x11 m40X27X11 m
Speed450 m/min450 m/min450 m/min
Gram Weight8-100 g/m28-100 g/m28-100 g/m2
Yield(Products according to 40 g/m2)10-12 T/DAY15-16 T/DAY20-22T/DAY



3.Main parts

3-1 Screw extruder


1. Aspect ratio L/D=30:1.
2.Screw diameter: Φ150mm
3.Siemens Bede AC motor 110kw, Fuji frequency controller
4.The spiral cylinder and screw are made of high-strength nitriding steel, equipped with resistance heater, divided into several heating zones, including a full set of electrical control devices, including power, temperature control, pressure control, etc. see the plasticizing capacity of electric control part for details

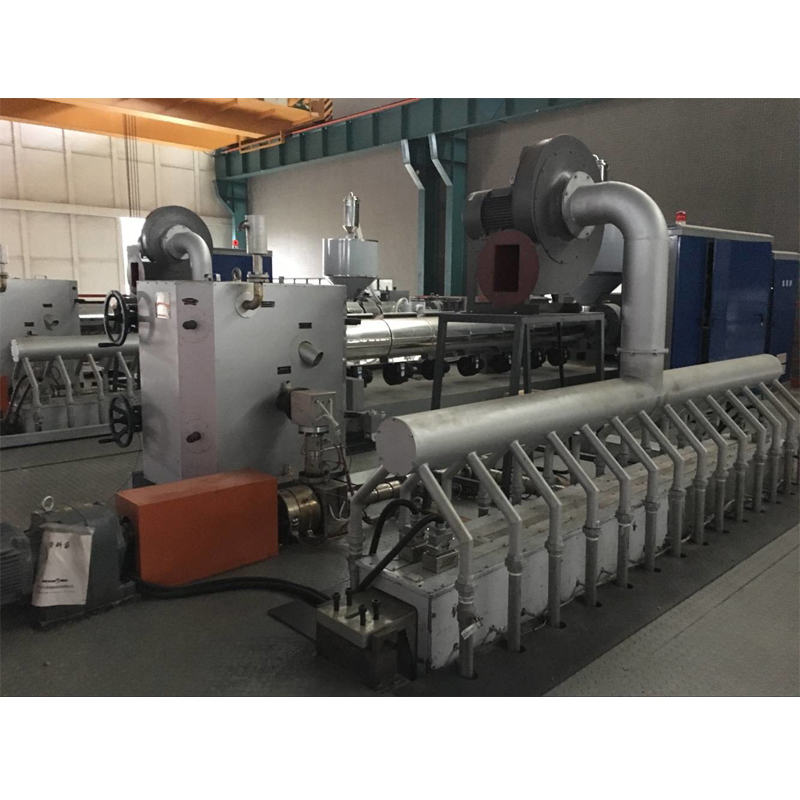

3-2 Spinning box with heating system


1)Each spinning box can distribute the melt symmetrically and equivalently
2)The melt pipeline adopts compound casing and electric heating
3)The heating power of the heat-conducting oil furnace is 48KW; the maximum heating temperature is 300 degrees, and it is heated outside the oil furnace.

3-3 Spinneret and spinning components

1)It is made of precision high temperature resistant steel, 2800 * 256 in length, The aperture is 45S /4 pairs, and the spinneret contains about 15600 holes (specific parameters are subject to the manufacturer).
2)Each set of components includes: Aluminum washer, distribution plate, aluminum clad multi-layer stainless steel filter screen

3-4 Cooling air blowing (up and down) drafting device


1)The upper drawing system adopts fully enclosed shape, and is equipped with hydraulic lifting spinneret device.
2)The inner layer of plane tempered glass, 12mm thick, adopts slit technology
3)It is divided into draft channel, diffusion channel, mobile device. The lower tension system is connected with the upper tension system. It is made of high-quality stainless steel and has an adjusting mechanism
4)Total amount of suction air: 25000m³/ h, air temperature 20-30 ℃
5)The outer surface of the upper and lower drawing devices is provided with an insulating layer

4.Our advantage:

4-1. We have professional sales and engineers, are ready to send emergency repair parts in 24 hours, easily damaged parts in 5 days with professional knowledge.
4-2. We focus on customer service, all year non-stop service, personal training and so on.
4-3. Not only provide customer service, but also pre-sales system,
including solution to product selection, storage of parts, technical guidance, operating training, exchange management platform and so on.
4-4.Realizing the idea of focusing on customer success, creating value to customer.

5. Application

Medical supplies: surgical clothes, masks, isolation clothes, patient clothes, bags, etc.
Labor protection supplies: protective clothing, automobiles, motorcycle covers, dust covers, spray paint overalls, raincoats, etc.
Travel goods: beach umbrellas, beach clothes, recycling bags, etc.
Cleaning supplies: baby diapers, adult incontinence pads, sanitary napkins, filter products, etc.;

6.Certificate

7.FAQ

Q1:What is the warranty and guarantee term of your company?
A1:12 months after machine finished installation
Q2:Can we choose different brand of parts ? can we customize the machine according to our need ?
A2:Yes, our equipment is customized and can be designed according to your requirements.
Q3:How long does it take to produce the machine?
A3:As we have different type of non woven fabric machine, such as S/SS/SSS/SMS/SMMS production line, so the delivery time is different. normally ,the delivery time is 8 month after confirm payment.
