PP SS SSS Nonwoven Fabric Making Machine Non Woven Fabric For Home Textile

Product Width

2400mm(Availed width)

Die head Qty

Spunbond 3 sets

Filament denier

(S)≤1.7-2.0den (M)2~4μ m

Fabric weight range

10-100g/ m2

Product Description

1.Product details

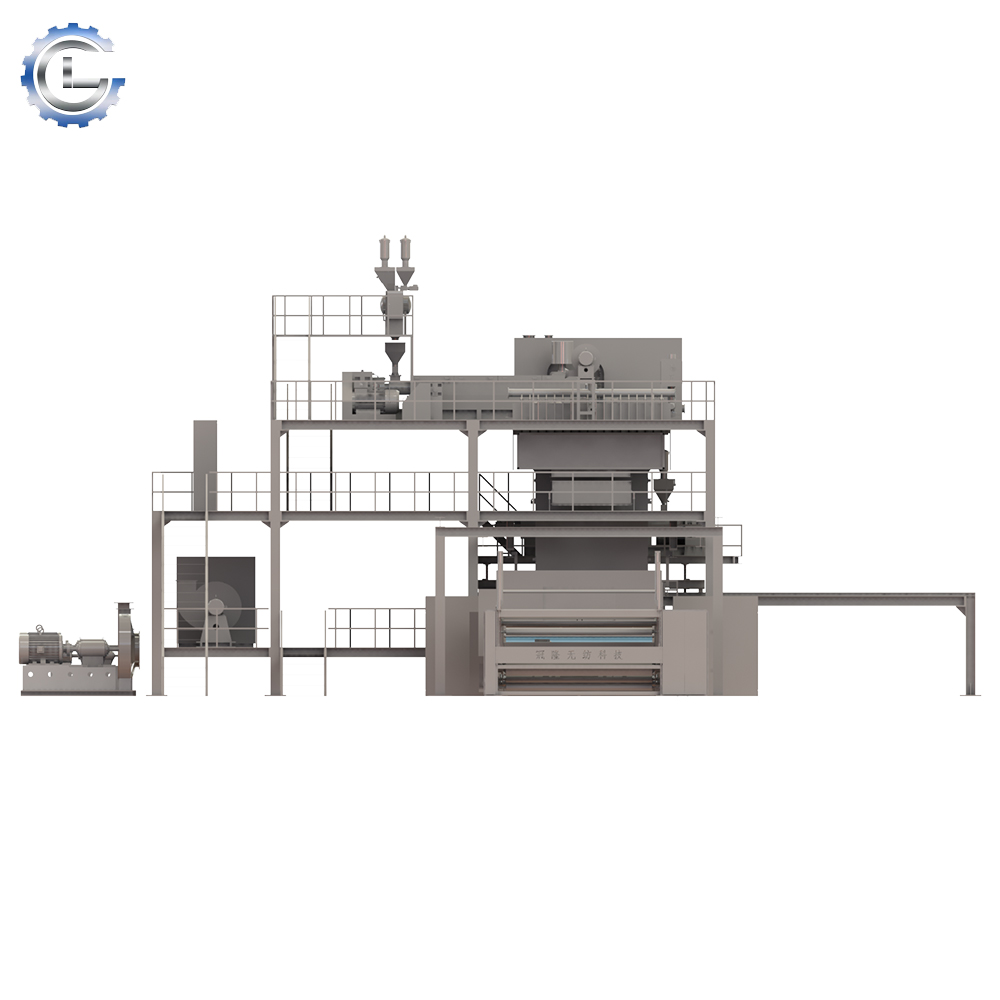

SSS Spunbond Composite Nonwoven Fabric Production Line
1.2.Product Width:2400mm(Availed width)
1.3. Die head Qty.:Spunbond 3 sets
1.4. Filament denier:(S)≤1.7-2.0den (M)2~4μ m
1.5. Fabric weight range:10-100g/ m2
1.6. Max. Production speed:350m/min
1.8.Electric consumption(average):SSS<800-1000 ℃/T

There’re other advantages of SSS Spunbond Nonwoven Machine:

1. About the design:

SSS Spunbond Nonwoven Machine adopts an intelligent electrical control cabinet and spinning drafting system. The system controlling mode features in advanced AC frequency-modulated speed, fully digital synchronized communications. It runs in high efficiency and low power consumption.
Based on the features above, SSS Spunbond Nonwoven Machine can help customers to save labor, and widely compatible with different high requirements of productions.
2. About the production process:

SSS Spunbond Nonwoven Machine is the professional manufacturer in three layers of nonwoven fabric. It is manufactured for PP/PET/PLA/Bi-Component spunbond nonwoven fabrics’ production. After the raw materials input, undergo the process of extrusion, spinning, quenching, closure air stretching, web formation, calendaring, winding and cutting as per requirements and then packed for storage and delivery.

3. About the products of fabrics:

Because the fabrics have greater intensity, better breath-ability, and better feeling, they are widely used for various fields such as medical and health, beauty care products, hygienic products, industrial and agricultural protective covers, parking linning and so on.
4. About the package:

We pack the main machine parts in wooden cases. The electrical parts will be packed with plastic and then packed into wooden cases. With the steel structure, they will be packed into containers.

Technical Parameter

The main specifications of SSS Spunbond Nonwoven Machine:
Model No.GL-SSS
SMS(product width)1600 mm2400 mm3200 mm
Equipment size31x13x11 m32x14x11 m34x15x11 m
Speed450 m/min450 m/min450 m/min
Gram Weight10-150 g/m210-150 g/m210-150 g/m2
Yield(Products according to 40 g/m2)12-13 T/DAY18-20 T/DAY24-26 T/DAY


PP raw material Feeding→Extrusion Melting → Filtering → Metering→spinning→Cooling
→Stretching →Web spreading→Thermal bonding→slitting→collecting

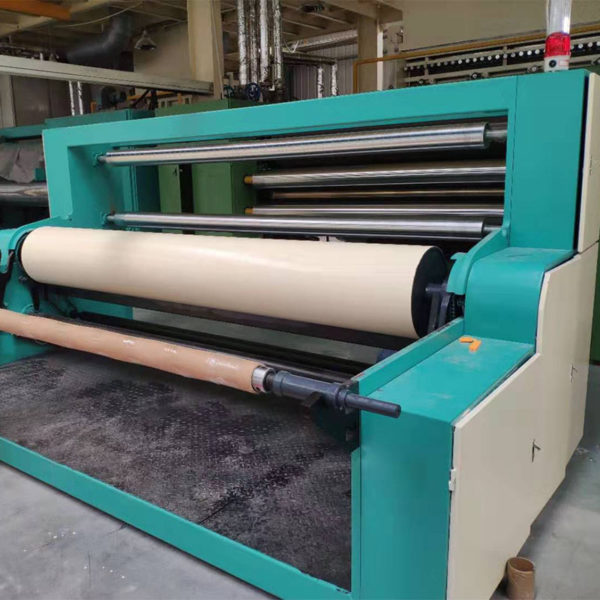

2.Main parts

2.Air Expansion Shaft:3200X3 PCS
3.Max diameter of fabric roll:1500mm
4.Max. roll Weight:750KG


Speed:250 Meters/Min

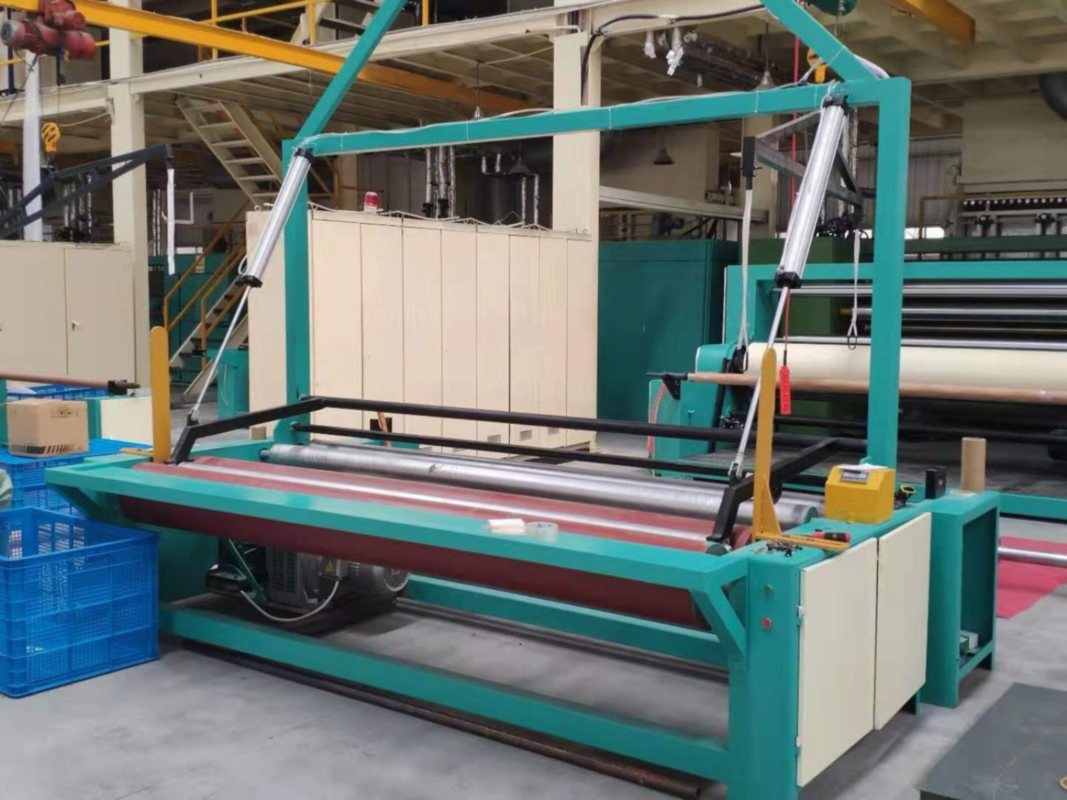

1.The main driving roller is made of seamless steel tube
2.Cutting speed:800-1000m/min
3. Siemens Bede AC motor, 15kw * 1 set, Fuji variable frequency controller of Japan
4.Minimum cutting width: 100 mm
5.Maximum winding diameter: 1000mm
6.Number of slitting knives 16 sets
7. 3 carbon fiber gas expansion shafts

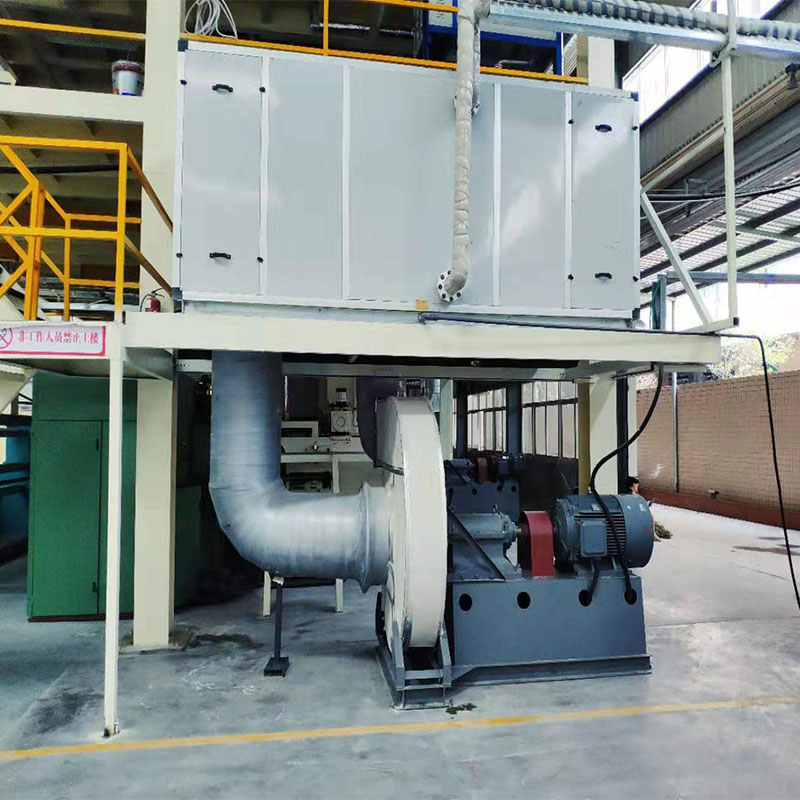

1.The speed of exhaust fan is adjustable2.Accessories: GD-SM-SO2 static mixer
3.Total air volume: 15000-23000 m³/ h
4.Air pressure regulator: Fuji Inverter(RKC-F900)

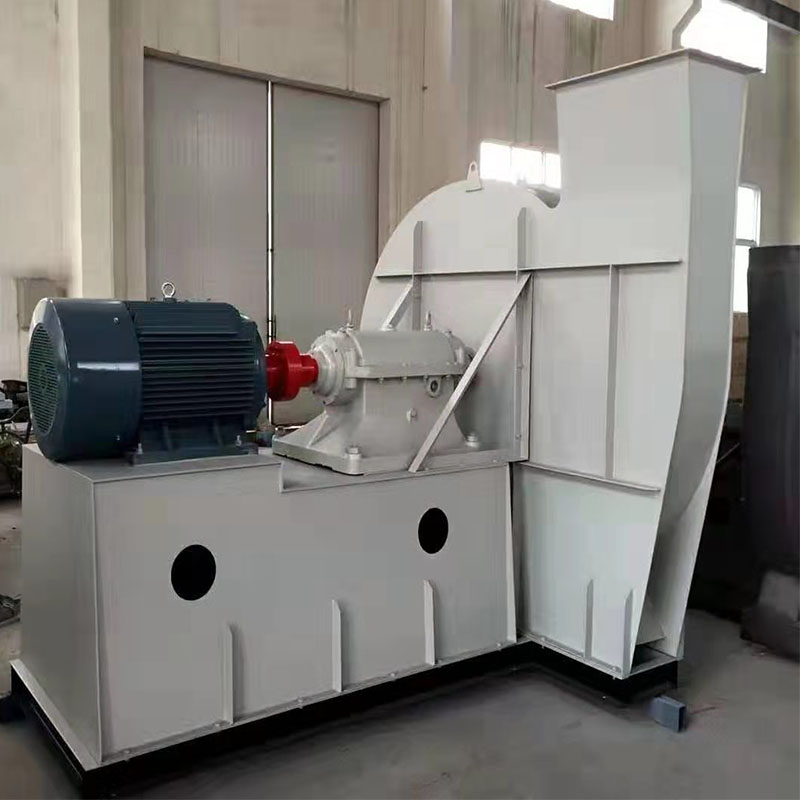

5.The fan power is 75KW * 1 set, 90kW * 1 set, including the exhaust pipe,and the suction air is discharged to the outdoor
6. The power of cold air fan is 75kw, 2sets, Siemens Bede motor is adopted

1. Cold water circulation system, cooling water pipeline and water tower
2. The head of the cryocompressor is made in Hanzhong, Taiwan,China,150T/H;
3.The water supply system is made of glass fiber, and the designed daily water consumption is about 1 cubic meter (mainly for cooling water supplement)

1.The high temperature calcined spinneret is used to melt a large amount of polymer on the parts and then flow into the collection container at the lower part of the furnace
2. Automatic integration, with low vacuum alarm, over temperature alarm, water cut-off alarm and other advanced safety protection devices


3-1PACKAG – Shopping bag, Rice Packaging, Clothes packaging, etc.
3-2HYGIENE – Baby and adult diapers, Female hygiene, etc.
3-3MEDICAL – Surgeon’s masks, Disposable garments, etc.
3-4FURNITURE – Beds Cover, Seatings Cover, etc.

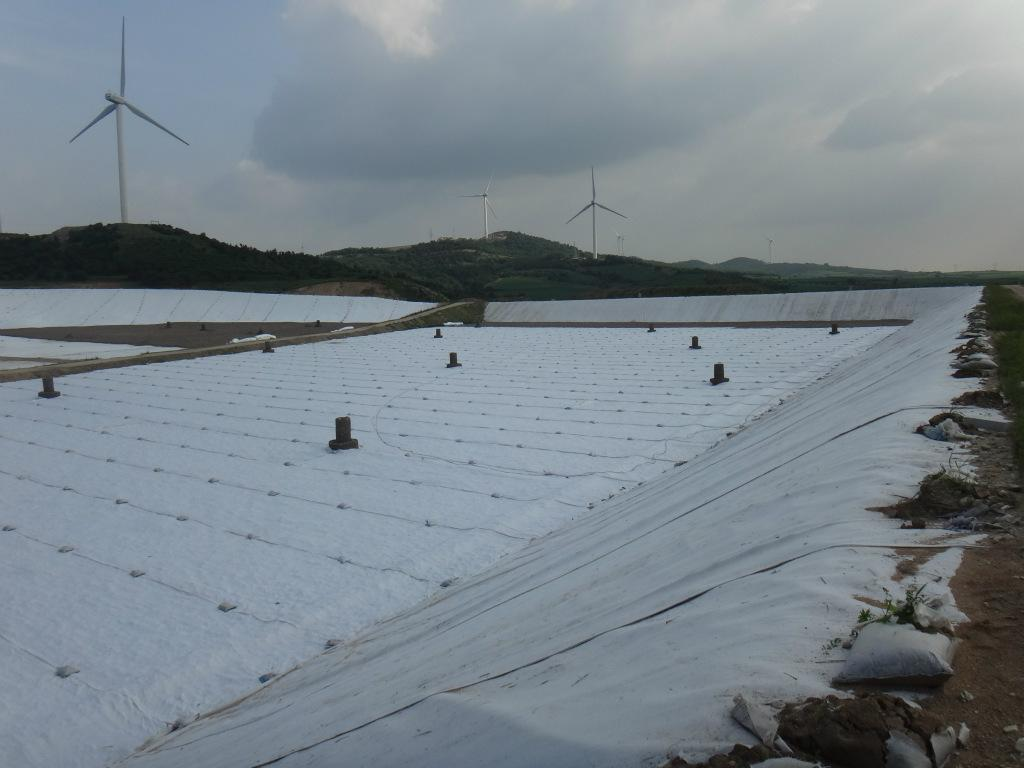

3-5TECHNICAL – Geotextiles, Agriculture, etc.

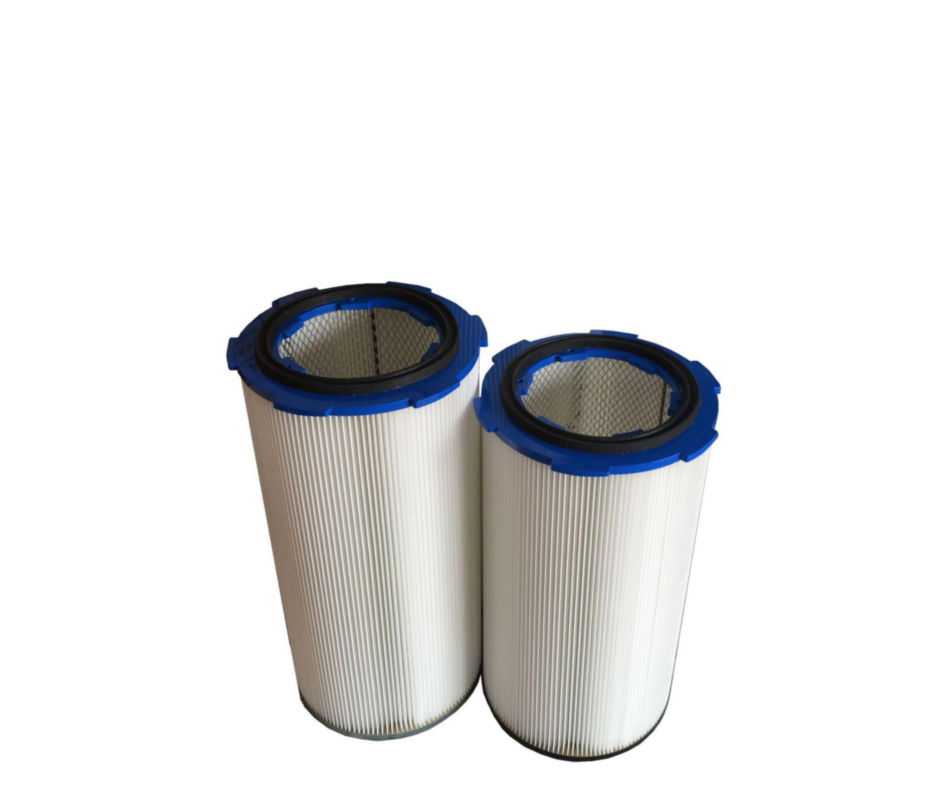

3-6FILTRATION – Air, Gas, Liquids, etc.

4.Company Profile:

Guanlong is one of the leading manufacturer of complete nonwoven line in China. We focus on manufacture,sale and research & development of nonwoven lines. We started working on manufacture of nonwoven lines in year 2005.

We mainly manufacture spunbond nonwoven lines such as single beam(S line), double beams(SS line) and three-beams(SSS line), spunmelt (spunbond & meltblown) nonwoven lines such as S,SS,SSS,SMS,SSMS,SMMS. SSMXS,The main width are 1600mm/2400mm/3200mm.The grammage range will be from 10gsm to 80gsm with high technical performance.

Meanwhile,we also provide the the related slitting machine, treated machine,perforated machine,stretch film wrapping machine, 2/3 layer laminated machine, PE coating machine etc. They are widely application to the hygiene,medical health care,industrial, agriculture, furniture,household,building, geotextile and filtration fields. Trust us, we are on the way to become your honest business partner!

5.Packing & Shipping

6.our service

Pre-Sales One-stop Service
After-Sales Service
* Inquiry and consulting support
*One year warranty
* Lastest industry trends
* Machine test video before delivery
* More fit bag making solution
English Manual. Electric Diagram
* Sample testing support
* Training how to instal the machine, training how to use
* view our Factory
the machine
Suggest layout support
*Engineers available to service machinery overseas


1. Q:How long will your engineer reach our factory?
A:Within one week after everything ready (machine arrival your factory, non woven material,
power source, air compressor etc.Prepared)
2. Q:Does your engineer understand English?
A:Our engineers understand a little English. All our engineers have more than five years machine
installation experience.
3. Q:What should we charge for your engineer?
A:You should charge for the cost of our engineer’s air tickets, hotel, food, and also their salary
800CNY one day per person.
4. Q:How many days it will take for the intallation?
A: It will take around 45 days, depends on the machine type.
5. Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finishing installation. In case you have any
problem, you can contact our sales at any time. Our engineers will take a solution video according
your description.
