GL-SSMMS PP Nonwoven Fabric Making Machine 380v Hospital Surgical Gown Making Equipment

Product Width

3200mm(Availed width)

Die head Qty

Spunbond 3 sets Meltblown 2 sets

Filament denier

(S)≤1.7-2.0den (M)2~4μ m

Fabric weight range

10-100g/ m2

Product Description

1.Company Profile:

Guanlong Non-textile Technology Co., ltd in Quanzhou is specialized in the research,design and manufacturing of non-woven fabric production line and non-woven processing machinery since 2017.Guanlong’s predecessor is Zhejiang General Nonwoven Machine Manufacturing Company, which started in 2005. Now Guanlong has developed a series of nonwoven technological solutions like S, SS,SSS, SMS, SMMS, SSMS and SSMMS production lines and a variety of nonwoven processing machine selections.
Guanlong insists on putting customers and quality first and strictly keeps promise to customers. In the condition of 20 years of practice and exploration, Guanlong has made remarkable quality achievements and consistently got good appraisal in the domestic and overseas nonwoven industry. Our customers are widespread in Chinese land. And as to foreign customers, India, Indonesia, Vietnam, Bangladesh, other Southeast Asian and Middle East regions have our product memory.
Guanlong’s company policy: Product is personality ,Innovation is the driving force and Customers’ need is our standard. We warmly invite your cooperation.

2.Product details

1.Main data
1.1. product type:SSMMS Spunbond Meltblown Composite Nonwoven Fabric; SSS Spunbond Nonwoven Fabric; M Meltblown Composite Nonwoven Fabric

1.2. Product Width:3200mm(Availed width)
1.3. Die head Qty.:Spunbond 3 sets Meltblown 2 sets
1.4. Filament denier:(S)≤1.7-2.0den (M)2~4μ m
1.5. Fabric weight range:10-100g/ m2
1.6. Max. Production speed:600m/min
1.7. Capacity:9000-1000T/Year
1.8. Electric consumption(average):SSMMS<1600 degrees/T; SSS<800-1100 degrees/T

2. product description

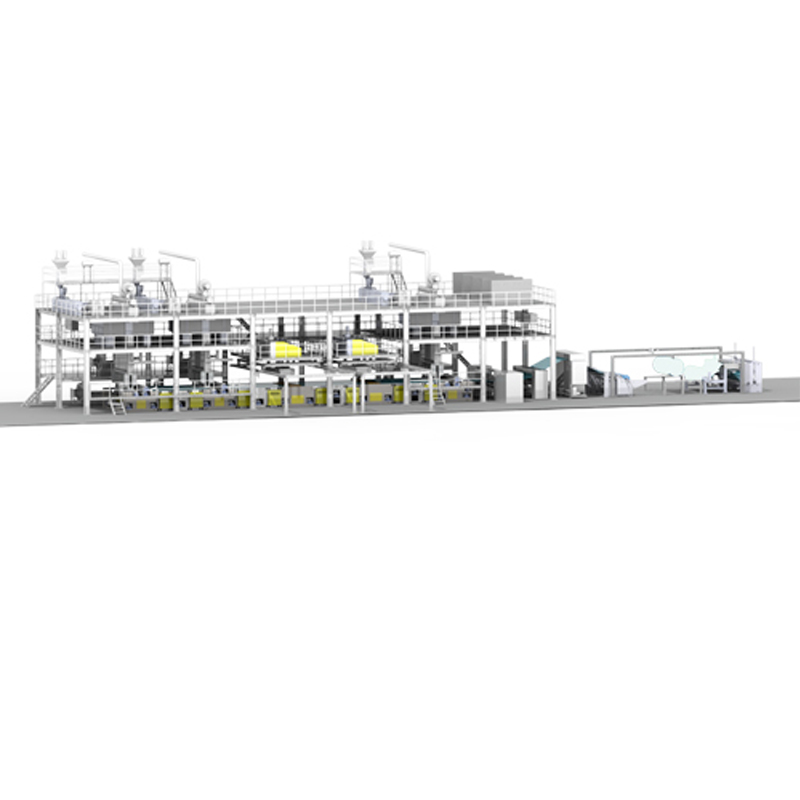

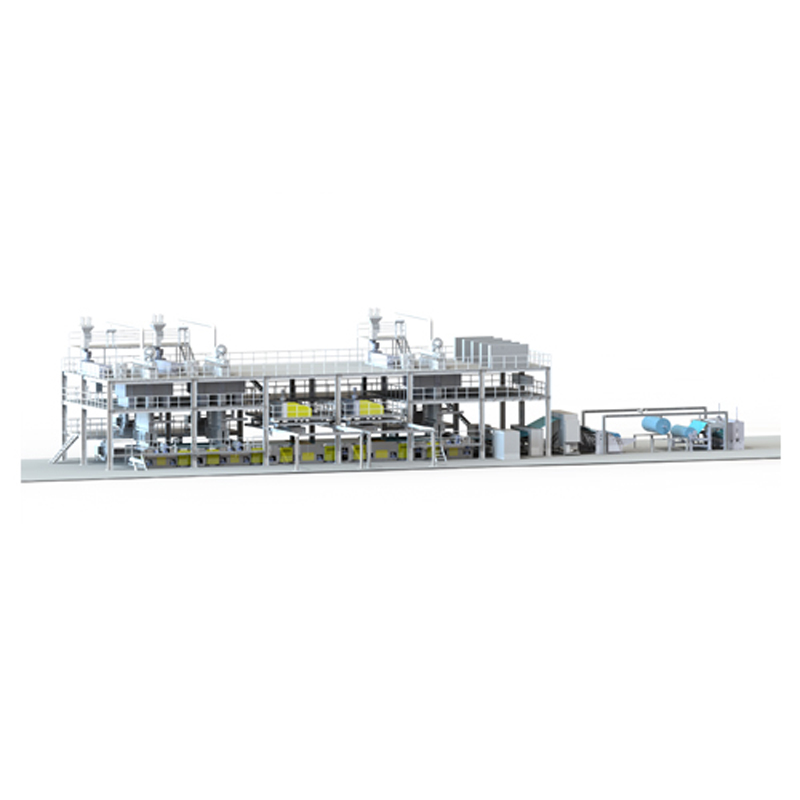

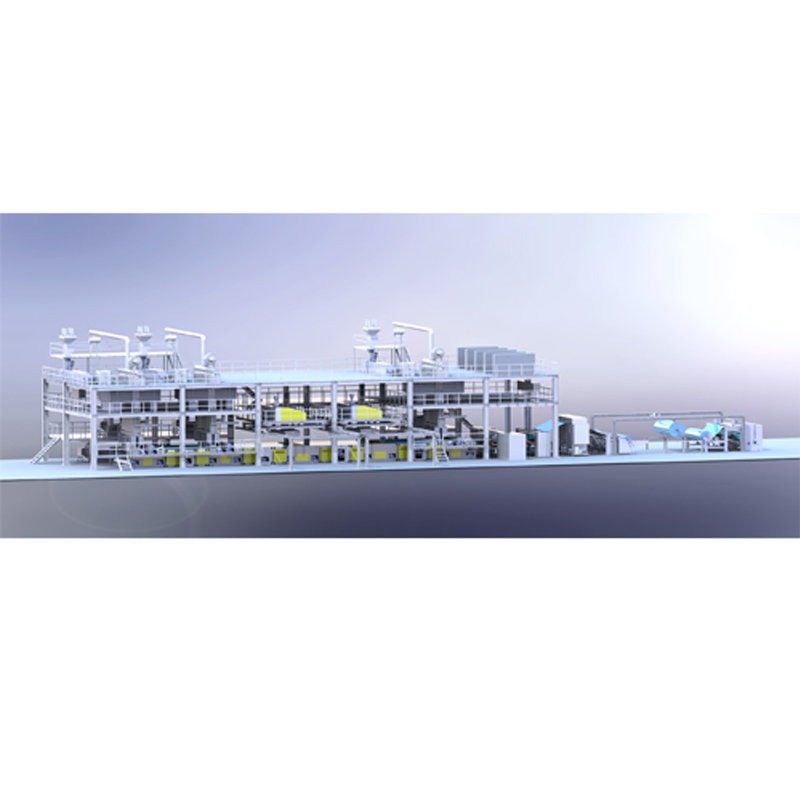

SSMMS Spunmelt Nonwoven Machine is a composite line for nonwoven production which combines spunbond and meltblown manufacturing technique. It has five beams in production and can be customized for you according to your demands of production.
It adopts an intelligent electrical control cabinet and spinning drafting system. The system controlling mode features in advanced AC frequency-modulated speed, fully digital synchronized communications.
SSMMS Spunmelt Nonwoven Machine is manufactured for PP composite non-woven fabrics. After the raw materials input, go through extrusion melting, filtering, metering, spinning, cooling, stretching, web spreading, thermal bonding and cutting as per requirements and then packed for storage and delivery.

3.Main parts

1.Maximum working pressure: 16MPa
2.Maximum working temperature: 310℃
3.Single cylinder filter area: 0.5-19㎡

1. Aspect ratio L/D=30:1.
2.Screw diameter: Φ150mm
3.Siemens Bede AC motor 110kw, Fuji frequency controller
4.The spiral cylinder and screw are made of high-strength nitriding steel, equipped with resistance heater, divided into several heating zones, including a full set of electrical control devices, including power, temperature control, pressure control, etc. see the plasticizing capacity of electric control part for details

1.The main driving roller is made of seamless steel tube
2.Cutting speed:800-1000m/min
3. Siemens Bede AC motor, 15kw * 1 set, Fuji variable frequency controller of Japan
4.Minimum cutting width: 100 mm
5.Maximum winding diameter: 1000mm
6.Number of slitting knives 16 sets
7. 3 carbon fiber gas expansion shafts

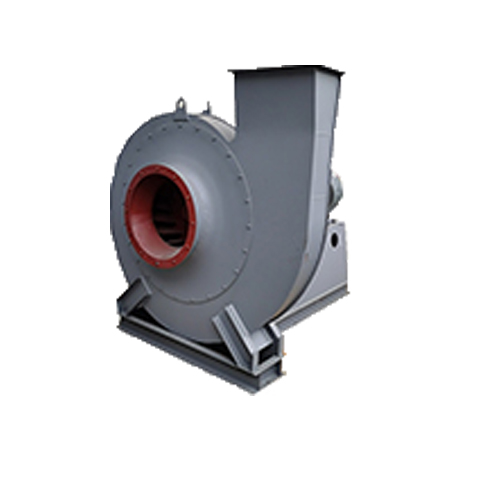

1.The speed of exhaust fan is adjustable2.Accessories: GD-SM-SO2 static mixer
3.Total air volume: 15000-23000 m³/ h
4.Air pressure regulator: Fuji Inverter(RKC-F900)
5.The fan power is 75KW * 1 set, 90kW * 1 set, including the exhaust pipe, and the suction air is discharged to the outdoor
6. The power of cold air fan is 75kw, 2sets, Siemens Bede motor is adopted
