S 1.6m Nonwoven Fabric Making Machine

Fabric width

1600mm(Availed width)

Maximum winding diameter



According70 g/㎡,9-10t/24h

Monofilament size


Product Description

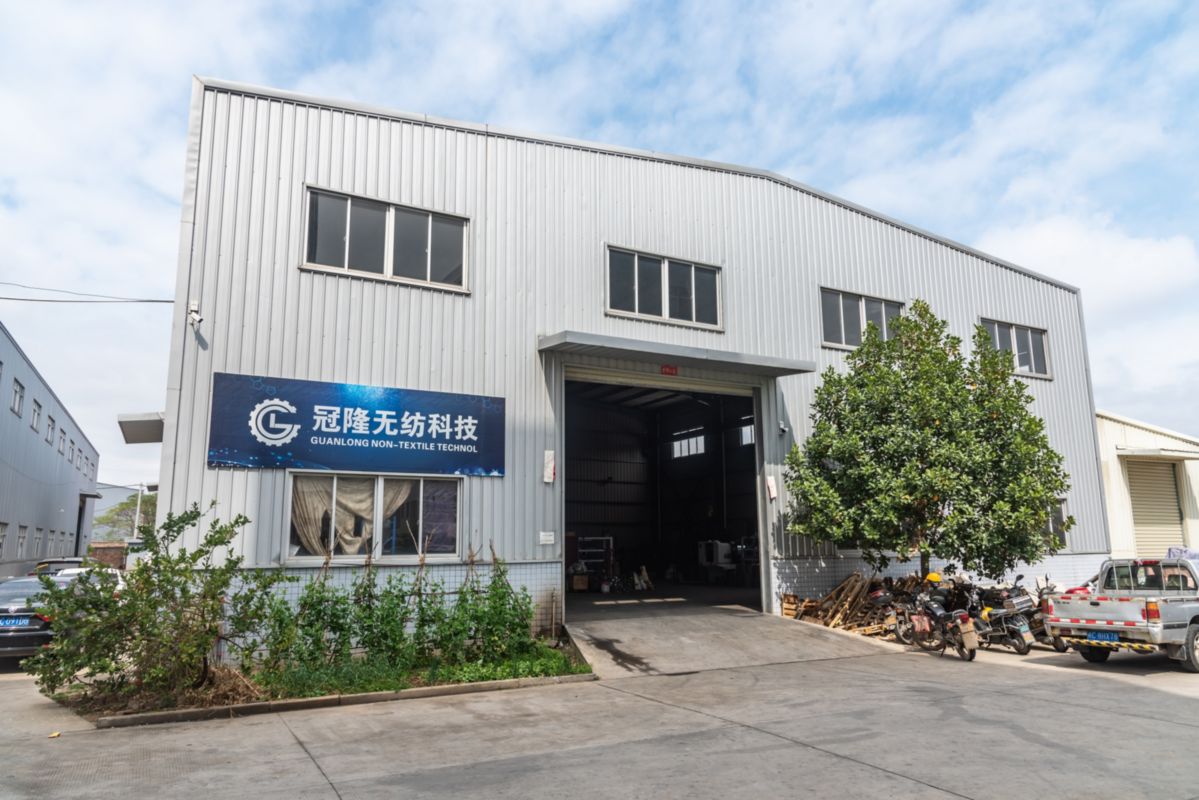

1.Company Profile:

Guanlong Non-textile Technol Co., Ltd. is one professional manufacturer of PP Spunbond Nonwoven fabric production line Fujian Province.Our group was established in 2005, involved in the field of nonwoven machine, nonwoven fabric, medical supplies, etc. We are providing high-quality products and excellent services for global users.
We are specialized in manufacturings(Spunbond), M(Meltblown), SS, SXS, SSS, SMS,SSMS,SMMS,SSMMS,etc. Type PP(polypropylene) Spunbond & Melt blown Nonwoven Production line.We also produce the standard PP Spunbond Nonwoven fabric.All our products are passed the CE, ISO and SGS.
Our company occupies more than 2,000 acres and has more than 60 professional skilled workers.We offer professional engineer support, high efficiency after service and competitive price superiority,and attract customers from all over the world, we export to over 20 countries, including India, Vietnam, Bangladesh, Indonesia and the Middle East.
We are reliable supplier of the customers with 1 years warranty. We can offer best quality machine with innovative ideas and excellent after service to meet your requirements.We are looking forward to get more cooperation.

2.Product details

2-1:Main Technology data
1.Fabric width:1600mm(Availed width)
2.Maximum winding diameter:Φ1500MM
3.Capacity:According70 g/㎡,9-10t/24h
4.Monofilament size:<2.5d
5.Fabric weight:10~200 g/㎡
6.Designed speed:150M/MIN ;(Working speed:130 M/MIN)
7.Equipment size:length 15 *width10* height 11

2-2. product description
S Spunbond Nonwoven Machine adopts an intelligent electrical control cabinet and spinning drafting system. The system controlling mode features in advanced AC frequency-modulated speed, fully digital synchronized communications.
S Spunbond Nonwoven Machine is featured by lower investment, compact construction, small covering area, and labor-saving.

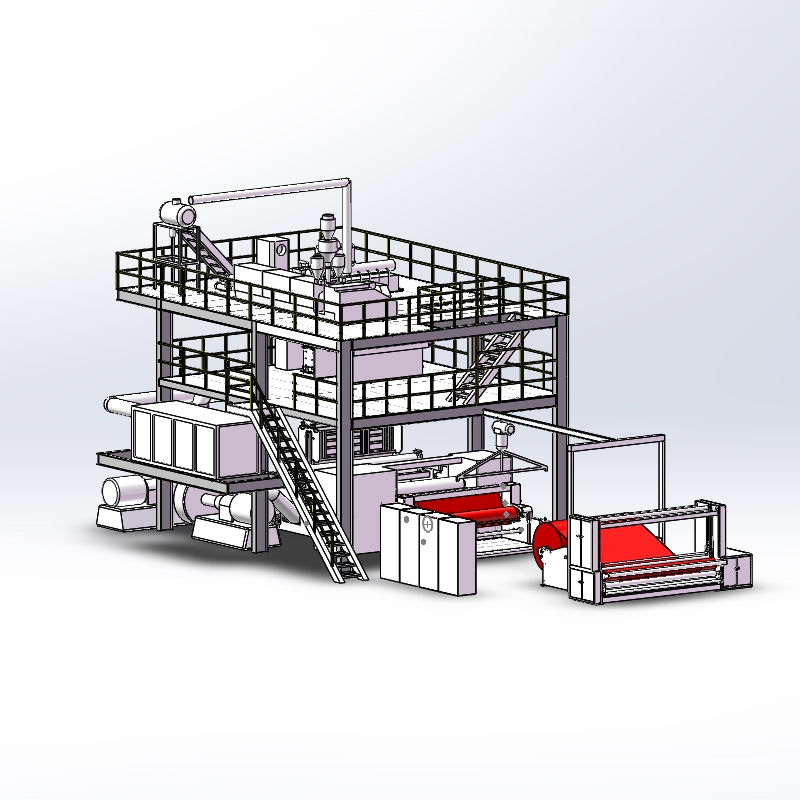

S Spunbond Nonwoven Machine is a single-beam professional manufacturer of single-layer nonwoven fabric equipment which is manufactured for PP/PET/PLA/Bi-Component Spunbond nonwoven fabrics’ production. After the raw materials input, undergo the process of extrusion, spinning, quenching, closure air stretching, web formation, calendaring, winding and cutting as per requirements and then packed for storage and delivery.

2-3 Technical Parameter

The main specifications of S Spunbond Nonwoven Machine:
Model No.GL-S
SMS(product width)1600 mm2400 mm3200 mm
Equipment size15x10x11 m15x10x11 m15x10x11 m
Speed150 m/min150 m/min150 m/min
Gram Weight10-180 g/m210-180 g/m210-180 g/m2
Yield(Products according to 40 g/m2)4 T/DAY7-8 T/DAY9-10 T/DAY

3.Main parts

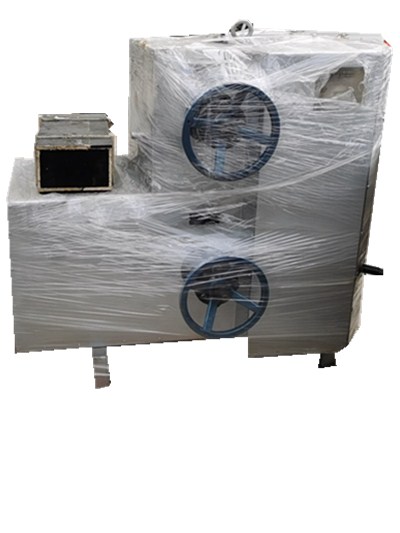

1.Maximum working pressure: 16MPa
2.Maximum working temperature: 310℃
3.Single cylinder filter area: 0.5-19㎡

1. Aspect ratio L/D=30:1.
2.Screw diameter: Φ150mm
3.Siemens Bede AC motor 110kw, Fuji frequency controller
4.The spiral cylinder and screw are made of high-strength nitriding steel, equipped with resistance heater, divided into several heating zones, including a full set of electrical control devices, including power, temperature control, pressure control, etc. see the plasticizing capacity of electric control part for details

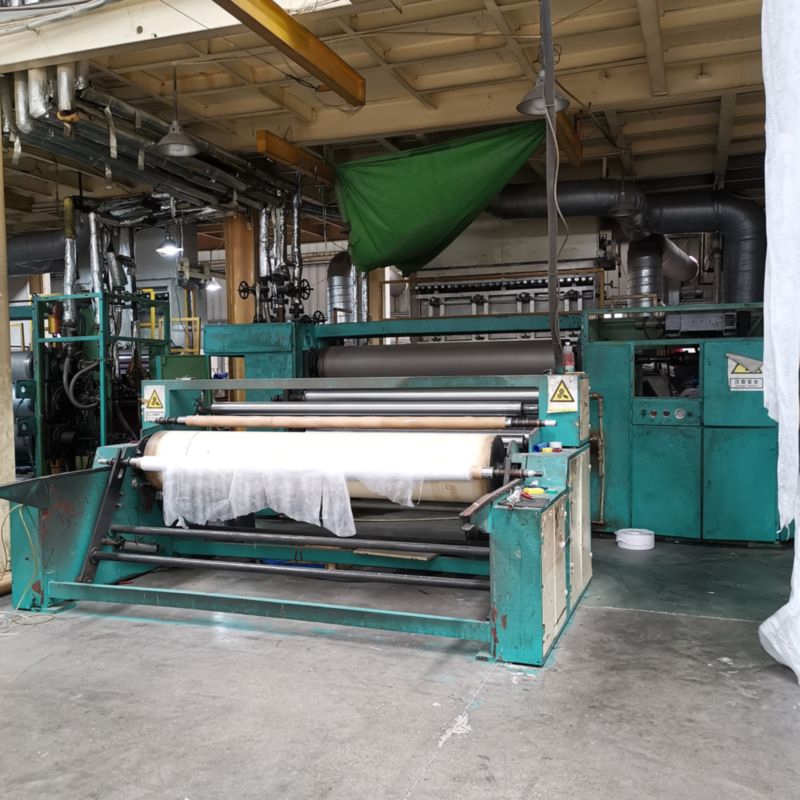

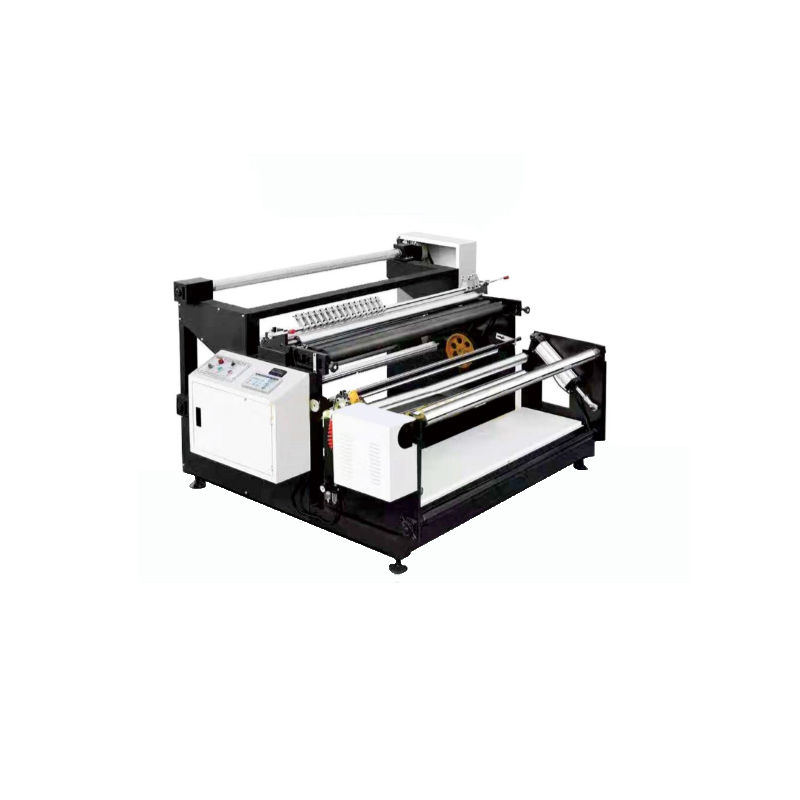

1.The main driving roller is made of seamless steel tube
2.Cutting speed:800-1000m/min
3. Siemens Bede AC motor, 15kw * 1 set, Fuji variable frequency controller of Japan
4.Minimum cutting width: 100 mm
5.Maximum winding diameter: 1000mm
6.Number of slitting knives 16 sets
7. 3 carbon fiber gas expansion shafts

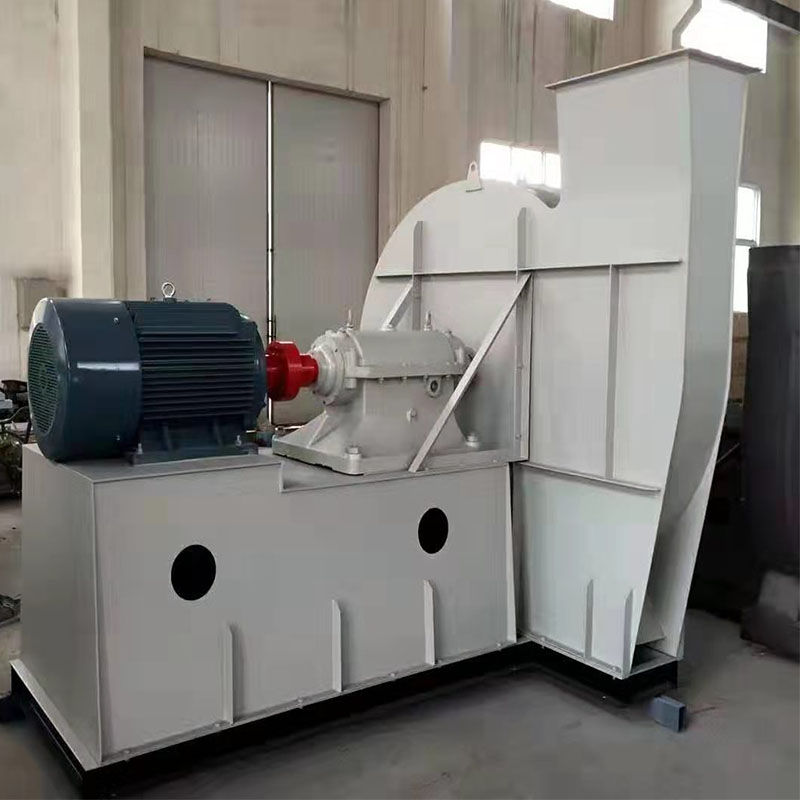

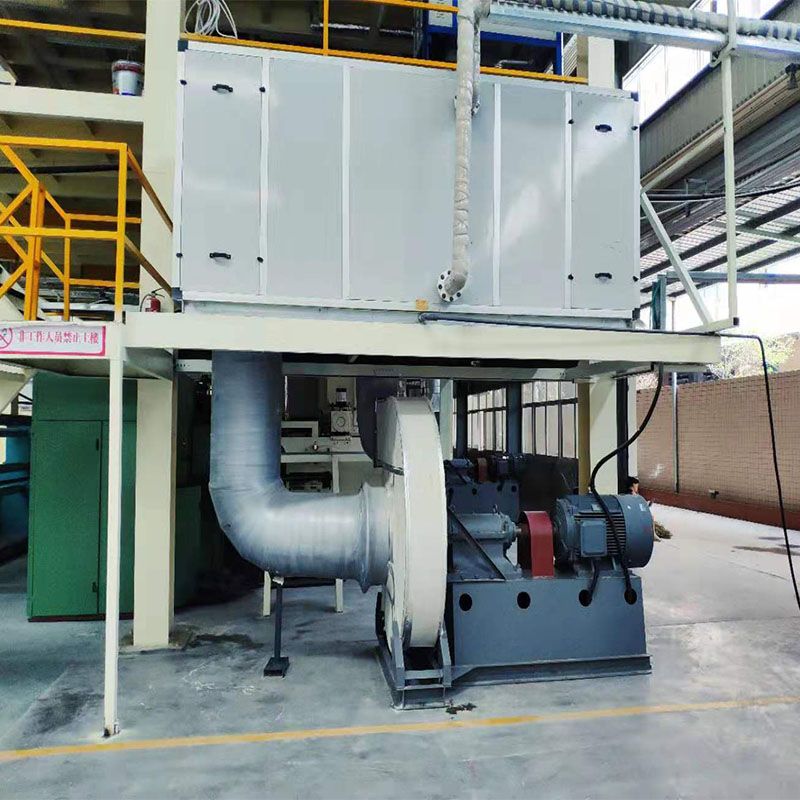

1.The speed of exhaust fan is adjustable2.Accessories: GD-SM-SO2 static mixer
3.Total air volume: 15000-23000 m³/ h
4.Air pressure regulator: Fuji Inverter(RKC-F900)
5.The fan power is 75KW * 1 set, 90kW * 1 set, including the exhaust pipe,and the suction air is discharged to the outdoor
6. The power of cold air fan is 75kw, 2sets, Siemens Bede motor is adopted

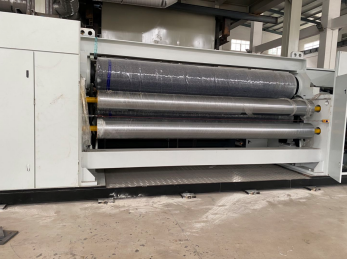

1.Power:45KW AC Motor
2.Heating: Oil Heating
